TEST REPORT

SALT SPRAY (FOG) TEST ASTM B-117

Geopolymer Solutions, LLC
11200 Cox Road
Conroe, Texas 77385
May 6, 2019

Report No.: C19-144

Test Samples: Four steel panels covered with insulation material ( Cold Fusion Concrete FP250) on one surface.

Size of Sample: 8”x 3”x 1/4”

Test Duration: 5000 Hours

Test Started: 2-11-2019

Test Completed: 05-06-2019

Test Cabinet Temperature: 96 °F

Humidifying Tower Temperature: 112°F

Air Pressure: 15 psig

Solution Concentration: 5% NaCl

Solution pH: 7

Volume of Salt Solution Collected: 1.6 ml/hr.

Remarks:

The following samples were submitted:

Insulated panel Marked #1 having 3/8” of insulation thickness (Scribed an X thru insulation)

Insulated panel Marked # 2 having 5/8” of insulation thickness

Insulated panel Marked #3 having 3/4” of insulation thickness (Scribed an X thru insulation)

Insulated panel Marked #4 having 1-1/2” of insulation thickness



Observations:

After completion of 5000 hours of salt spray exposure test, all four insulated steel panels were evaluated for presence of spot rusting, and corrosion attack to the metal substrate protected by insulation. A small area of insulation from each sample was removed to inspect the condition of the metal substrate. Visual examination revealed that the metal substrate under the insulation was virtually free from any spot rusting or corrosion damage due to salt spray exposure testing. Furthermore, it appears that the protection of the metal substrate under the insulation is independent of insulation thickness.

5000 HR SALT SPRAY_1

Insulated metal panels before exposure

5000 HR SALT SPRAY_2

Insulated metal panels after 250 hours of exposure

5000 HR SALT SPRAY_3

Insulated metal panels after 500 hours of exposure

5000 HR SALT SPRAY_4

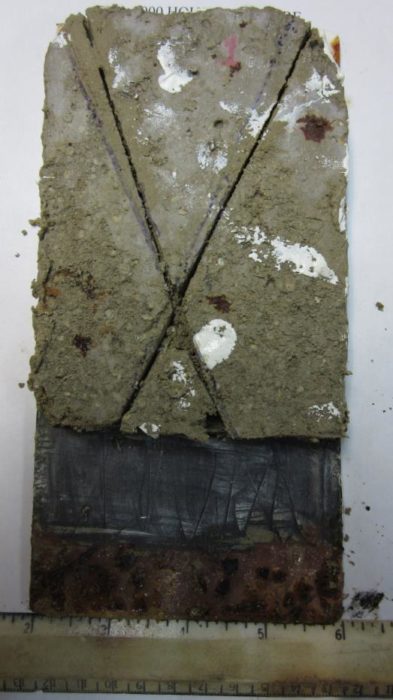

5000 HR SALT SPRAY_5
5000 HR SALT SPRAY_6

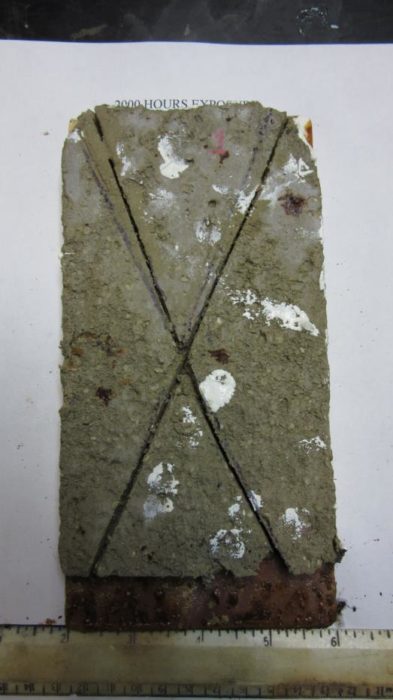

Insulated metal panels after 1500 hours of exposure

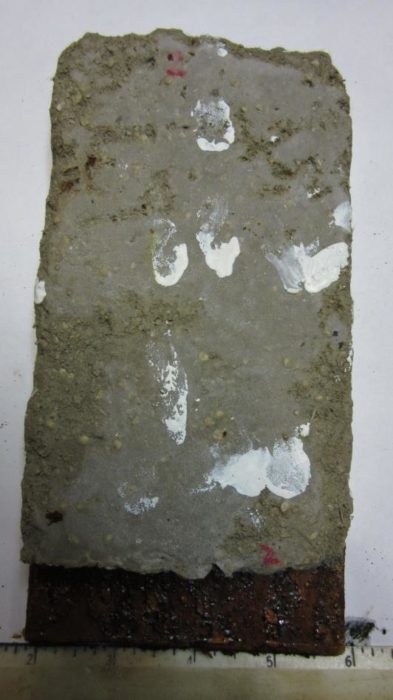

5000 HR SALT SPRAY_7
5000 HR SALT SPRAY_8
5000 HR SALT SPRAY_9

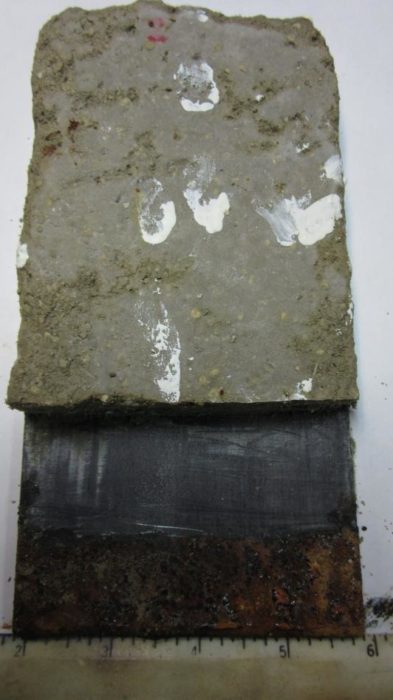

Insulated metal panels after 1500 hours of exposure

5000 HR SALT SPRAY_10
5000 HR SALT SPRAY_11
5000 HR SALT SPRAY_12

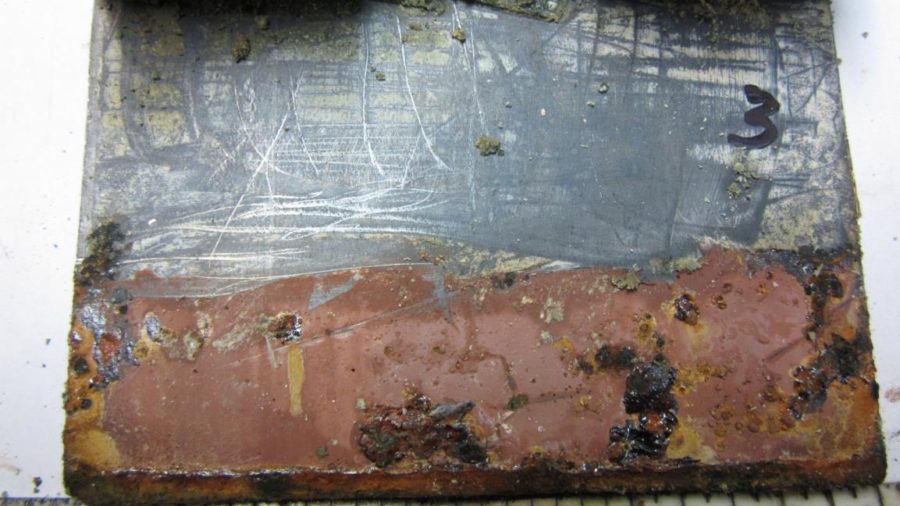

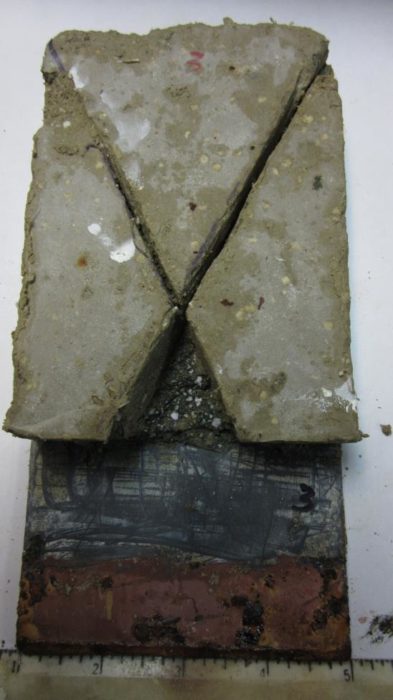

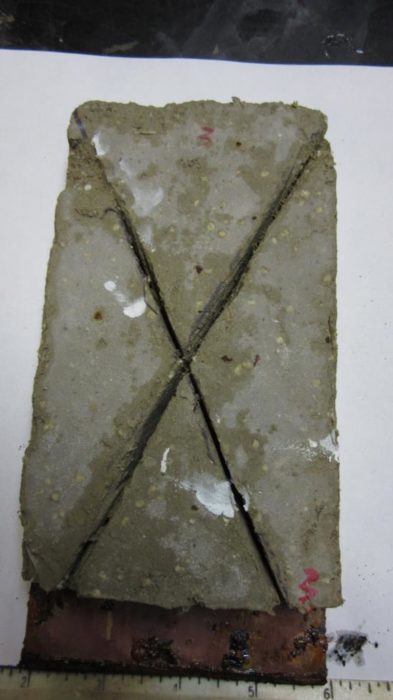

Insulated metal panels after 1500 hours of exposure

5000 HR SALT SPRAY_13

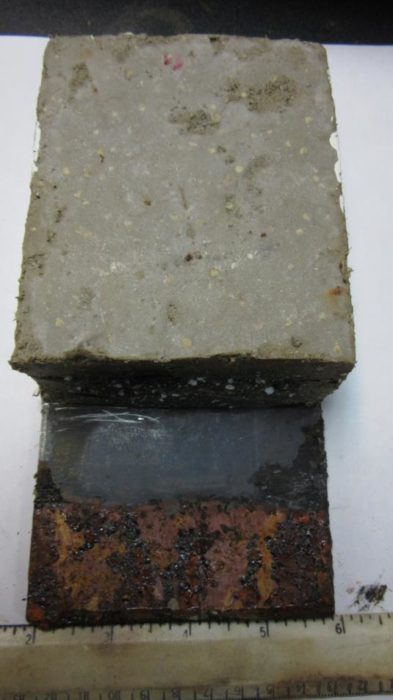

5000 HR SALT SPRAY_14
5000 HR SALT SPRAY_15

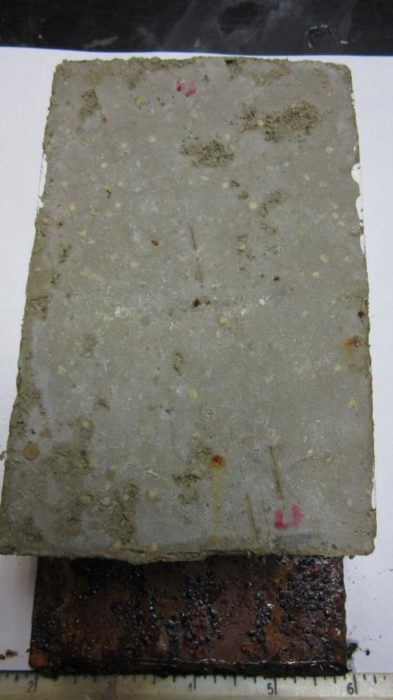

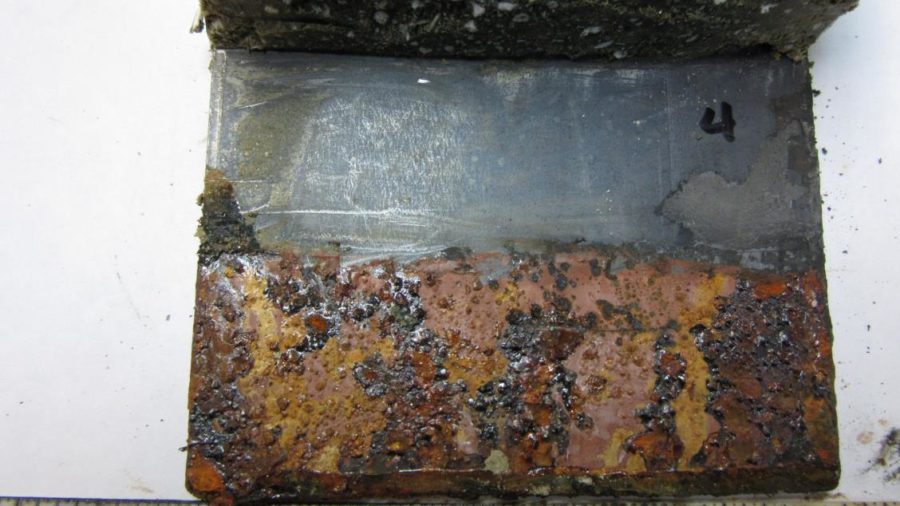

Insulated metal panels after 1500 hours of exposure

5000 HR SALT SPRAY_16
5000 HR SALT SPRAY_17

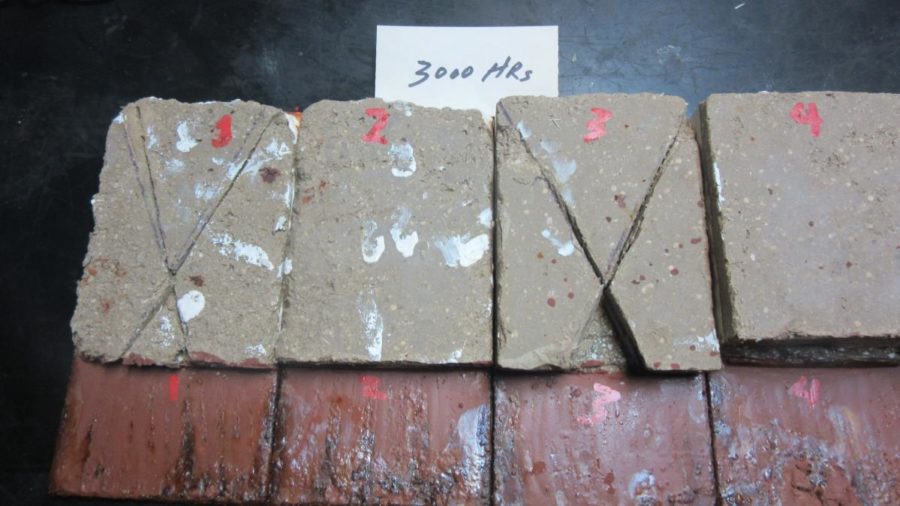

Insulated metal panels after 3000 hours of exposure
The metal substrate is free from spot rusting and/or corrosion damage

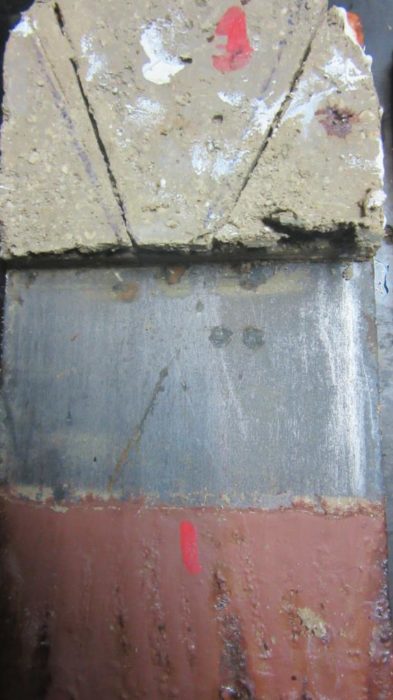

5000 HR SALT SPRAY_18
5000 HR SALT SPRAY_19

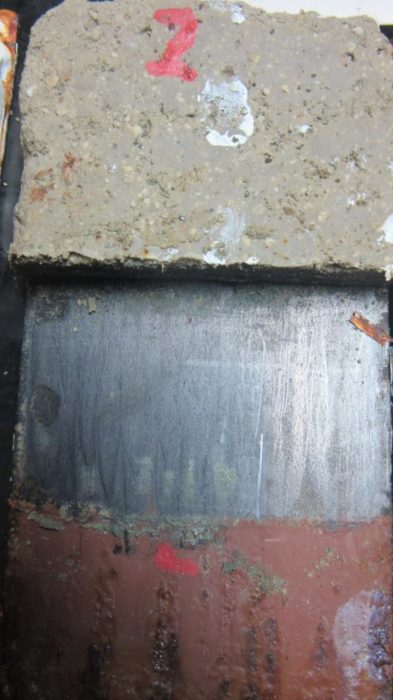

Insulated metal panels after 3000 hours of exposure

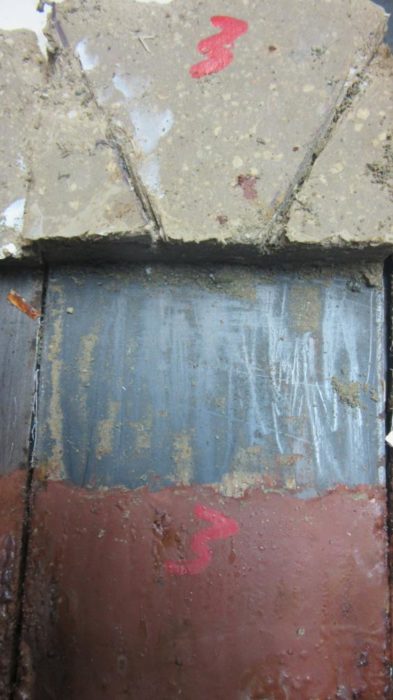

5000 HR SALT SPRAY_20
5000 HR SALT SPRAY_21

Insulated metal panels after 3000 hours of exposure

5000 HR SALT SPRAY_22

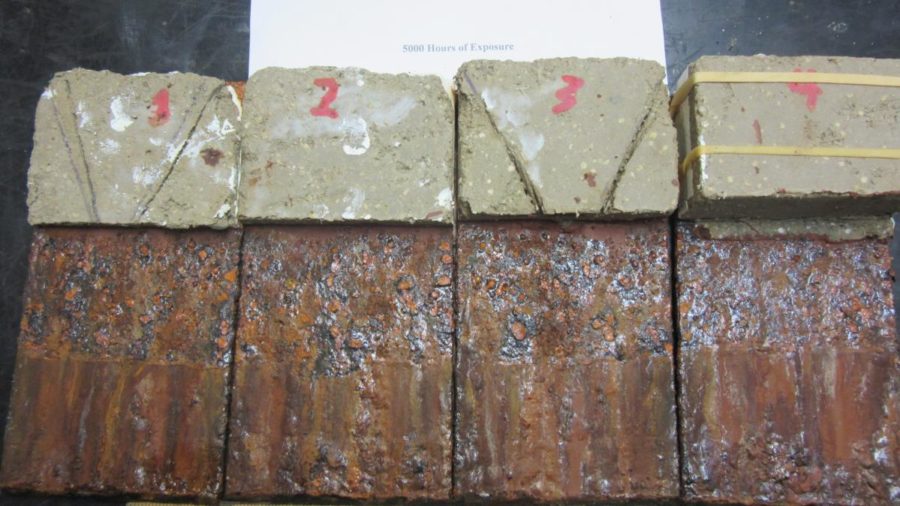

5000 HR SALT SPRAY
5000 HR SALT SPRAY_23
5000 HR SALT SPRAY_25

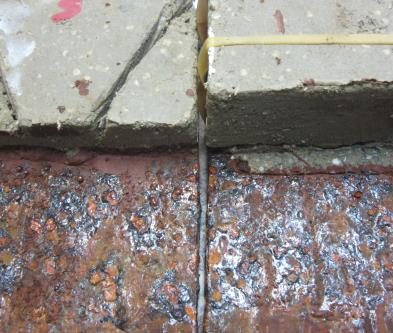

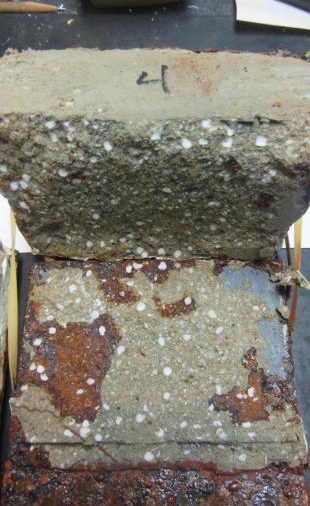

Sample # 4 showing localized surface rusting under the loose insulation

5000 HR SALT SPRAY_26

Insulated metal panels after 5000 hours of exposure
The metal substrate is free from spot rusting and/or corrosion damage

5000 HR SALT SPRAY_27

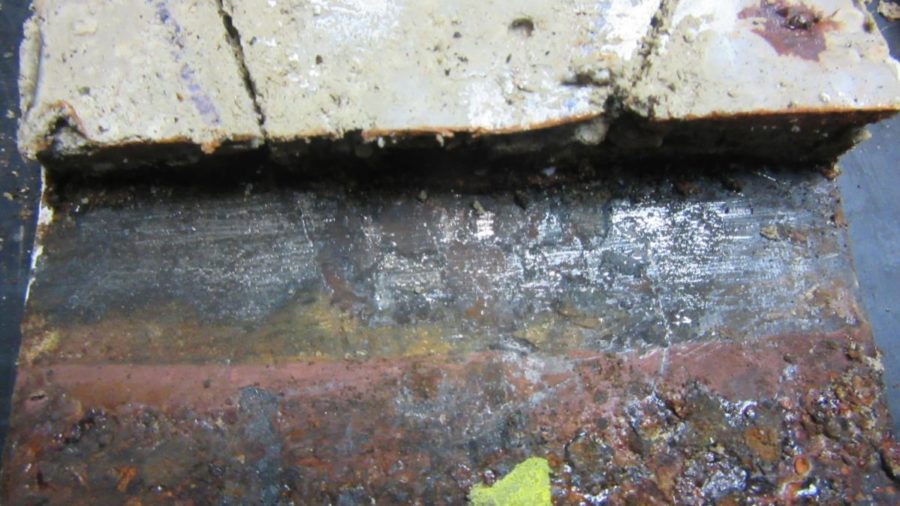

Insulated metal panels after 5000 hours of exposure

5000 HR SALT SPRAY-28

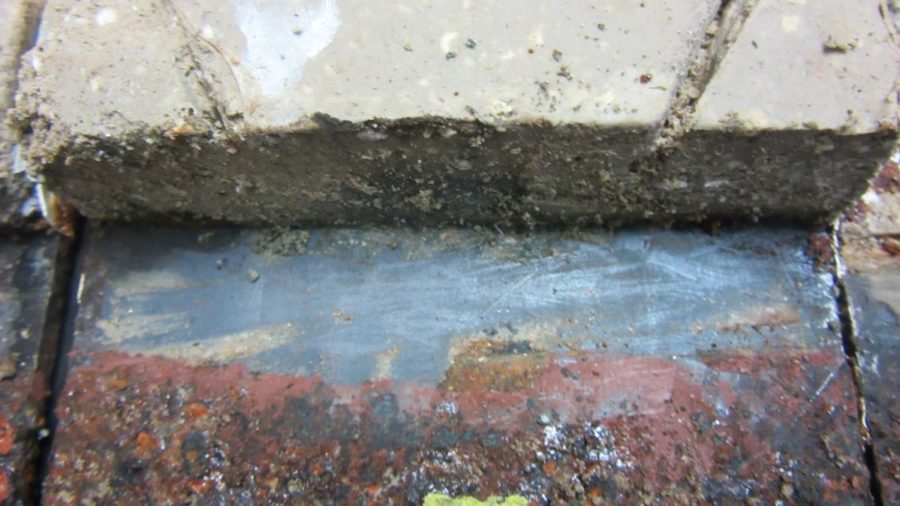

5000 HR SALT SPRAY_29

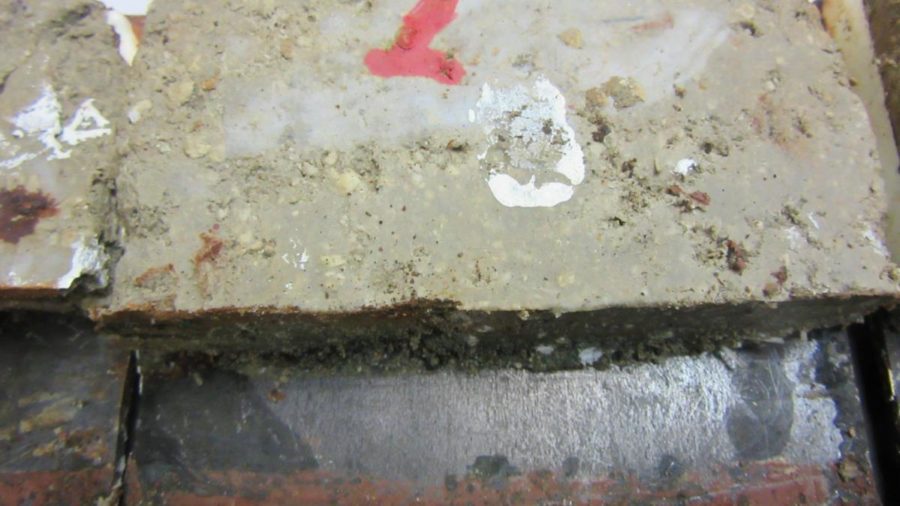

Insulated metal panels after 5000 hours of exposure

5000 HR SALT SPRAY_30

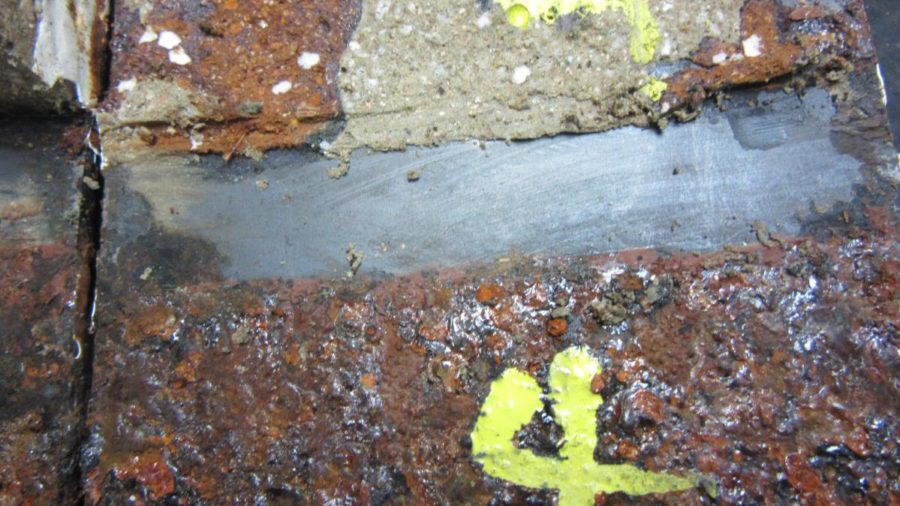

Insulated metal panels after 5000 hours of exposure
